The <OnboardingEmbed /> React component lets you embed Cal.com account creation, onboarding, and OAuth authorization directly inside your application. Users create a real Cal.com account, complete onboarding, and grant your app OAuth access — all without leaving your site. The component also has an inbuilt “dark” and “light” theme. The component supports two modes for receiving the authorization code:
  • Callback mode — provide onAuthorizationAllowed to receive the authorization code via a callback. No page navigation occurs.
  • Redirect mode — don’t provide onAuthorizationAllowed and the browser navigates to your redirectUri with the code as a query parameter. Works like a standard OAuth redirect.
npm install @calcom/atoms

​
Callback Mode

Provide onAuthorizationAllowed to receive the authorization code directly. The dialog closes and your callback fires after user authorizes your OAuth client — no page reload.
import { OnboardingEmbed } from "@calcom/atoms";
import { useState } from "react";

function App() {
  const [state] = useState(() => crypto.randomUUID());

  return (
    <OnboardingEmbed
      oAuthClientId="your_client_id"
      authorization={{
        scope: ["BOOKING_READ", "BOOKING_WRITE", "PROFILE_READ"],
        redirectUri: "https://your-app.com/cal/callback",
        state,
      }}
      onAuthorizationAllowed={({ code }) => {
        fetch("/api/cal/exchange", {
          method: "POST",
          body: JSON.stringify({ code, state }),
        });
      }}
      onError={(error) => console.error(error.code, error.message)}
      onClose={() => console.log("Dialog dismissed")}
    />
  );
}

​
Redirect Mode

Omit onAuthorizationAllowed and the browser navigates to your redirectUri after the user completes onboarding and grants access:
https://your-app.com/cal/callback?code=AUTHORIZATION_CODE&state=YOUR_STATE

import { OnboardingEmbed } from "@calcom/atoms";
import { useState } from "react";

function App() {
  const [state] = useState(() => crypto.randomUUID());

  return (
    <OnboardingEmbed
      oAuthClientId="your_client_id"
      authorization={{
        scope: ["BOOKING_READ", "BOOKING_WRITE", "PROFILE_READ"],
        redirectUri: "https://your-app.com/cal/callback",
        state,
      }}
      onError={(error) => console.error(error.code, error.message)}
    />
  );
}

​
Props

PropTypeRequiredDescription
oAuthClientIdstringYesYour OAuth client ID from OAuth Client Credentials.
hoststringNoCal.com host URL. Defaults to https://app.cal.com. Used for local development to point to cal web app.
theme"light" | "dark"NoTheme for the embedded onboarding UI. Defaults to "light".
user{ email?: string, name?: string, username?: string }NoPrefill user details in signup and profile steps.
authorizationAuthorizationPropsYesOAuth authorization parameters (see below).
onAuthorizationAllowed(result: { code: string }) => voidNoCalled with the authorization code on completion. If provided, enables callback mode. If omitted, enables redirect mode (browser navigates to redirectUri).
onError(error: OnboardingError) => voidNoCalled on unrecoverable error.
onAuthorizationDenied() => voidNoCalled when the user declines OAuth authorization. If provided, the callback fires and the dialog closes. If omitted, the browser navigates to redirectUri?error=access_denied&state=YOUR_STATE.
onClose() => voidNoCalled when the user dismisses the dialog before completing.
triggerReactNodeNoCustom trigger element. Defaults to a “Continue with Cal.com” button.

​
Authorization Props

PropTypeRequiredDescription
redirectUristringYesOne of the redirect URIs registered on your OAuth client. The server validates this against the client’s registered URIs. Must share the same origin (scheme + domain + port) as the page hosting the <OnboardingEmbed />, because the iframe uses postMessage with this origin for secure communication. For example, if your OAuth client has redirect URI https://your-app.com/cal/callback, then pass it here exactly the same https://your-app.com/cal/callback.
scopestring[]YesOAuth scopes to request. Must be a subset of scopes registered on the OAuth client. See Available Scopes.
statestringYesCSRF token. Generate a unique value per session and verify it matches when you receive the authorization code.
codeChallengestringFor public clientsPKCE code challenge (S256 method). Required for public OAuth clients. Generate a code_verifier (random 32-byte base64url string), hash it with SHA-256, and pass the result here. Store the code_verifier — you’ll need it to exchange the authorization code for tokens.
If the user signs up via Google, the user prop values are ignored — name, email, and username are inferred from the Google account instead.

​
Trigger and Theme

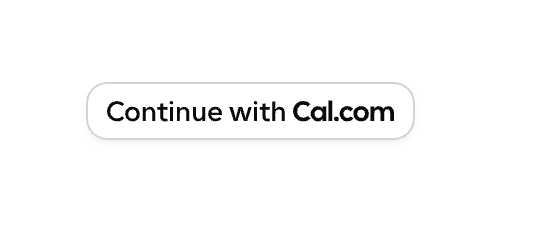

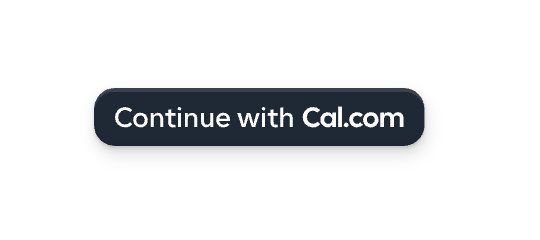

The theme prop controls the appearance of the trigger button, the onboarding steps, and the authorization page. The default trigger renders a “Continue with Cal.com” button:
Light theme (default)Dark theme
You can pass a custom trigger element via the trigger prop:
<OnboardingEmbed
  trigger={<button>Connect calendar</button>}
  // ...
/>

​
Walkthrough — Callback Mode

Here’s what happens when a user clicks the trigger with onAuthorizationAllowed provided and the user prop set:
<OnboardingEmbed
  oAuthClientId="your_client_id"
  theme="light"
  user={{ email: "[email protected]", name: "Bob", username: "bob100" }}
  authorization={{
    scope: ["EVENT_TYPE_READ"],
    redirectUri: "https://your-app.com/cal/callback",
    state,
  }}
  onAuthorizationAllowed={({ code }) => {
    alert(`Success! Auth code: ${code}`);
  }}
/>
1. Trigger — The component renders a “Continue with Cal.com” button. The user clicks it to open the onboarding dialog. 2. Login or Signup — The dialog opens with the login form. Existing users can sign in with email or Google. The user.email prop prefills the email field. New users click “Create account” to sign up with Google or email. When signing up with email, the user.email and user.username props are prefilled. When signing up with Google, the user prop values are ignored — name, email, and username are inferred from the Google account. 3. Profile — After signup, the user sets up their profile. The user.name prop prefills the name field. 4. Connect Calendar — The user can connect a calendar or skip this step. 5. Authorize — The user reviews the requested permissions and clicks “Allow”. The displayed permissions (e.g. “View event types”) correspond to the scope passed to the component — in this example, ["EVENT_TYPE_READ"]. 6. Done — onAuthorizationAllowed fires with the authorization code. Exchange it for tokens using the token endpoint.

​
Public Clients (PKCE)

Public OAuth clients cannot safely store a client secret (e.g. browser-only apps). Use PKCE to secure the authorization code exchange instead. Generate a code_verifier, derive a code_challenge from it, and pass the challenge to OnboardingEmbed. When you receive the authorization code, exchange it with the code_verifier instead of a client secret.
import { OnboardingEmbed } from "@calcom/atoms";
import { useEffect, useMemo, useState } from "react";

async function generatePkce() {
  const array = new Uint8Array(32);
  crypto.getRandomValues(array);
  const codeVerifier = btoa(String.fromCharCode(...array))
    .replace(/\+/g, "-").replace(/\//g, "_").replace(/=/g, "");

  const digest = await crypto.subtle.digest("SHA-256", new TextEncoder().encode(codeVerifier));
  const codeChallenge = btoa(String.fromCharCode(...new Uint8Array(digest)))
    .replace(/\+/g, "-").replace(/\//g, "_").replace(/=/g, "");

  return { codeVerifier, codeChallenge };
}

export function MyApp() {
  const state = useMemo(() => crypto.randomUUID(), []);
  const [pkce, setPkce] = useState<{ codeVerifier: string; codeChallenge: string } | null>(null);

  useEffect(() => {
    generatePkce().then(setPkce);
  }, []);

  if (!pkce) return null;

  return (
    <OnboardingEmbed
      oAuthClientId="your_client_id"
      authorization={{
        scope: ["EVENT_TYPE_READ"],
        redirectUri: "https://your-app.com/cal/callback",
        state,
        codeChallenge: pkce.codeChallenge,
      }}
      onAuthorizationAllowed={async ({ code }) => {
        // Exchange using code_verifier instead of client_secret
        const res = await fetch("https://api.cal.com/v2/auth/oauth2/token", {
          method: "POST",
          headers: { "Content-Type": "application/json" },
          body: JSON.stringify({
            client_id: "your_client_id",
            code_verifier: pkce.codeVerifier,
            grant_type: "authorization_code",
            code,
            redirect_uri: "https://your-app.com/cal/callback",
          }),
        });
        const { access_token, refresh_token } = await res.json();
      }}
    />
  );
}

​
Error Types

The onError callback receives an error object with the following shape:
interface OnboardingError {
  code: "INVALID_PROPS" | "SIGNUP_FAILED" | "ONBOARDING_FAILED" | "AUTHORIZATION_FAILED" | "STATE_MISMATCH" | "UNKNOWN";
  message: string;
}
CodeDescription
INVALID_PROPSRequired props are missing or invalid (e.g. oAuthClientId does not exist, redirectUri does not match a registered URI, or required authorization fields are empty).
SIGNUP_FAILEDAccount creation failed.
ONBOARDING_FAILEDAn error occurred during the onboarding steps.
AUTHORIZATION_FAILEDThe user denied access or OAuth consent failed.
STATE_MISMATCHThe state in the response did not match the state you provided. Possible CSRF attack.
UNKNOWNAn unexpected error occurred.

​
How It Works

The component opens a dialog containing an iframe that loads Cal.com’s onboarding flow. The iframe runs on Cal.com’s domain with a first-party session, so no third-party cookies are needed. The flow automatically detects the user’s state:
  • No session — starts at signup/login, then profile setup, calendar connection, and OAuth consent.
  • Session with incomplete onboarding — resumes from where the user left off.
  • Session with complete onboarding — skips straight to OAuth consent.
After the user grants access, you receive an authorization code that you exchange for access and refresh tokens using the token endpoint.
